Product Description

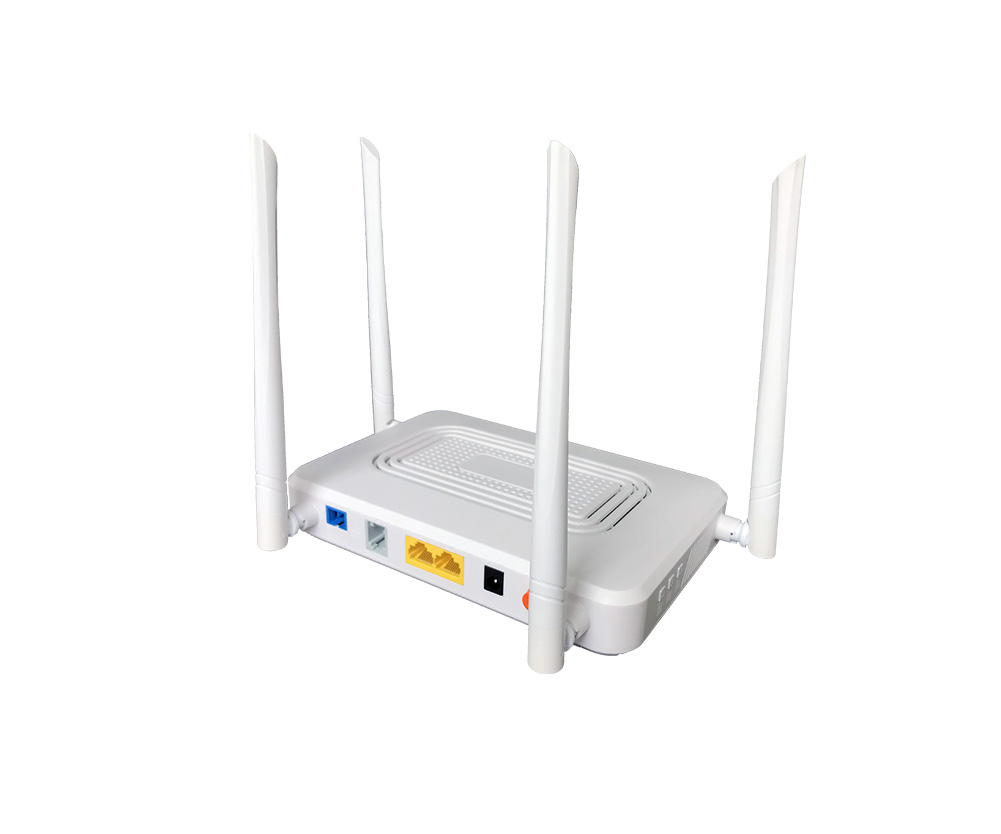

BNT-1262Q is 2GE+1POTS+WIFI (4T4R) EPON HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature EPON technology, which have high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QOS) guarantees, and the technology of 802.11n WIFI(2T2R),Layer 2/3, and high quality VOIP as well. It is fully compliant with EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as EPON. It can also be applied to a wide temperature environment, and also has a firewall function.
Features
HGU ONU, bridging and routing modes can be set
Compatible with popular EPON OLT
Support loop detection, IGMP, IGMP snooping
802.1Q VLAN, QinQ, Cos, DSCP, QOS for priority of service
Support port speed, support for storm suppression
Support 802.11a/b/g/n/ac WIFI(4T4R), rate up to 1.167Gbps
Support VOIP protocol: SIP、IMS-SIP
Support No-auth, WEP, WPA-PSK and WPA2-PSK
Support Telnet, CLI, OMCI/OAM /TR069 and Web management
POTS function support SIP protocol
Support NAT, Firewall function
Support remote software upgrade
Technical parameters
Items |
Unit |
Specifications |
PON standard |
EPON IEEE802.3ah |
|
Optical interface |
SC/PC connector,1EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps |
Wavelength |
nm |
Tx1310, Rx 1490 |
Interface |
data |
2GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Wireless |
Compliant with IEEE802.11 a/b/g/n/ac WiFi, 4T4R external antenna, 2.4GHz Operating frequency: 2.400-2.483GHz5.0GHz Operating frequency: 5.150-5.825GHzSupport MIMO, rate up to 1.167Gbps |
|
telephone |
1x FXS,RJ11 connectors Supporting G.711/G.723/G.726/G.729 Supporting T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 |
|
Indicator |
LED |
POWER, LOS, PON, WAN, LAN1, LAN2,FXS(PHONE) |
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
Humidity |
% |
10~90(non-condensing) |
Power supply |
V |
DC 12V,1.0A adapter |
Power consumption |
W |
≤10 |
Dimension |
mm |
189mm×126mm×35mm(L×W×H) |
Net weight |
Kg |
0.28 |
